UP-GRADATION OF 33/11 KV SUBSTATION AT IIT ROORKEE CAMPUS
Capacity of transformers is enhanced from 5MVA to 10MVA along with 33kV Circuit Breakers, 33kV Potential Transformers, 33kV Current Transformers, 33kV Isolators, 33kV Surge Arrestors, 33kV Control & Relay Panels, etc. These transformers will cater the existing as well as upcoming loads. Salient Features:
• 10MVA, 33/11kV Transformers with OLTC and AVR – 02 Nos.
• 33kV Circuit Breakers – 02 Nos.
• 33kV Potential Transformers – 06 Nos.
• 33kV Current Transformers – 06 Nos.
• 33kV Isolators – 04 Nos.
• 33kV Surge Arrestors – 06 Nos.
• 33kV Control & Relay Panels – 02 Nos.

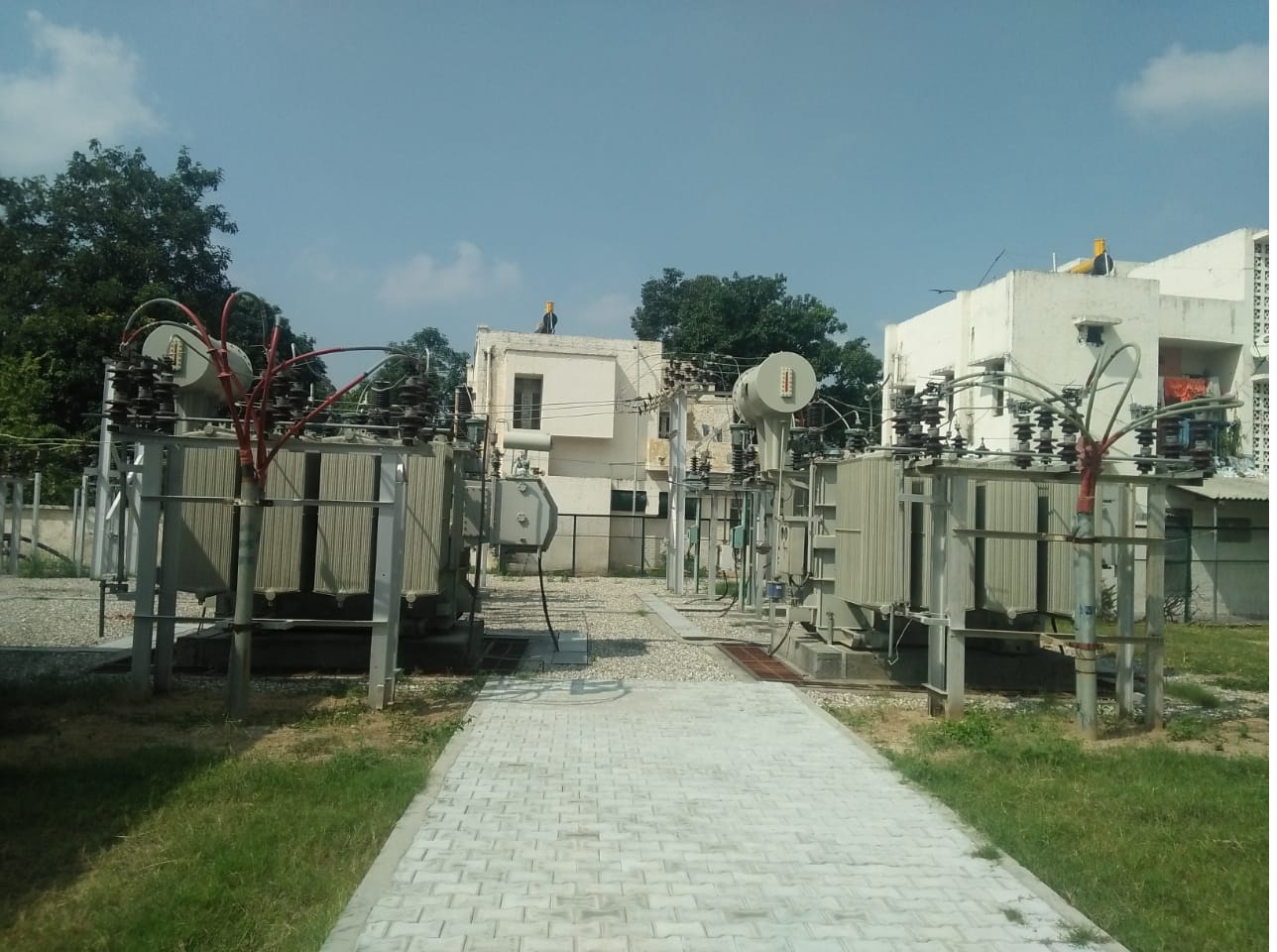

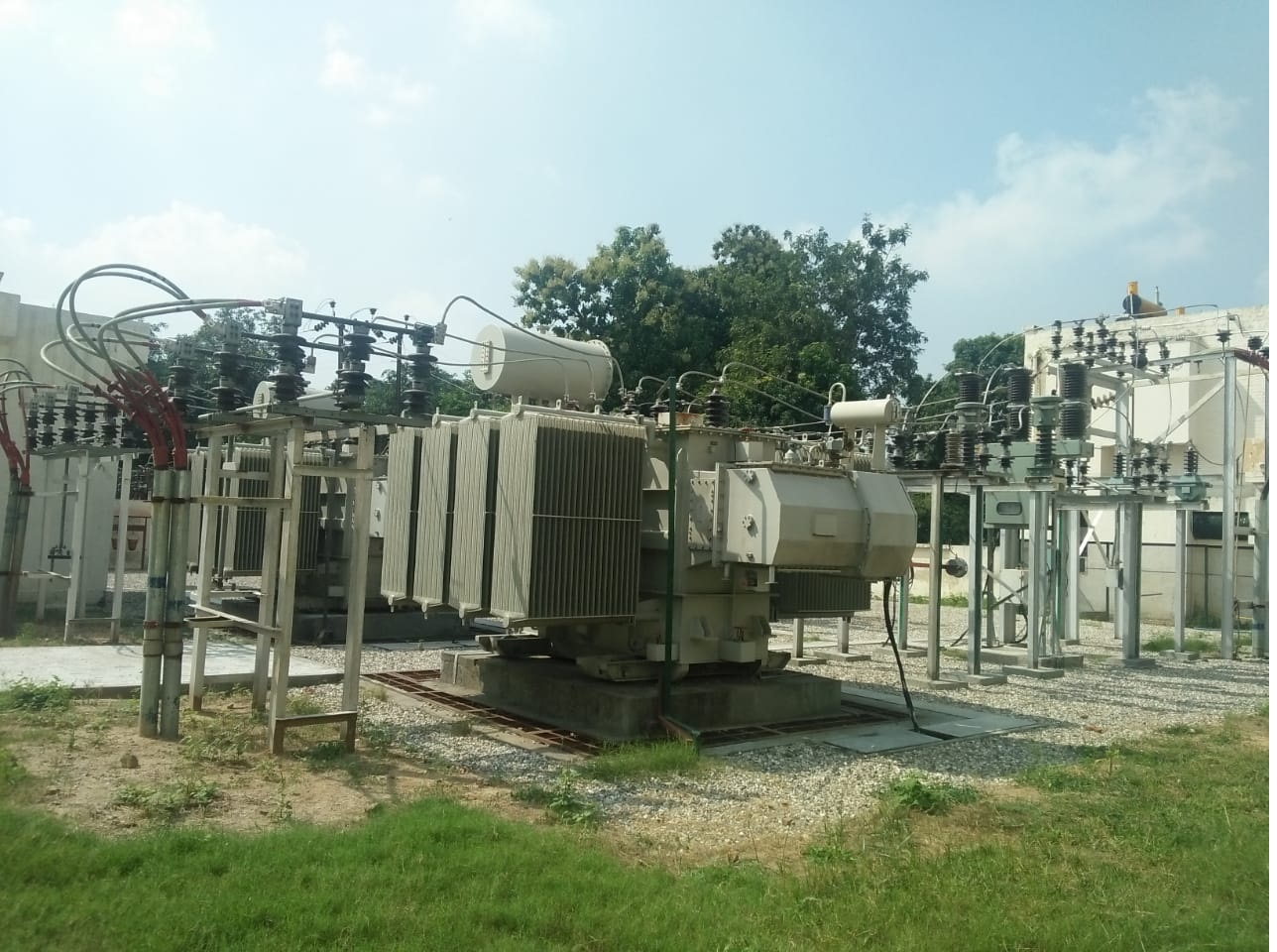

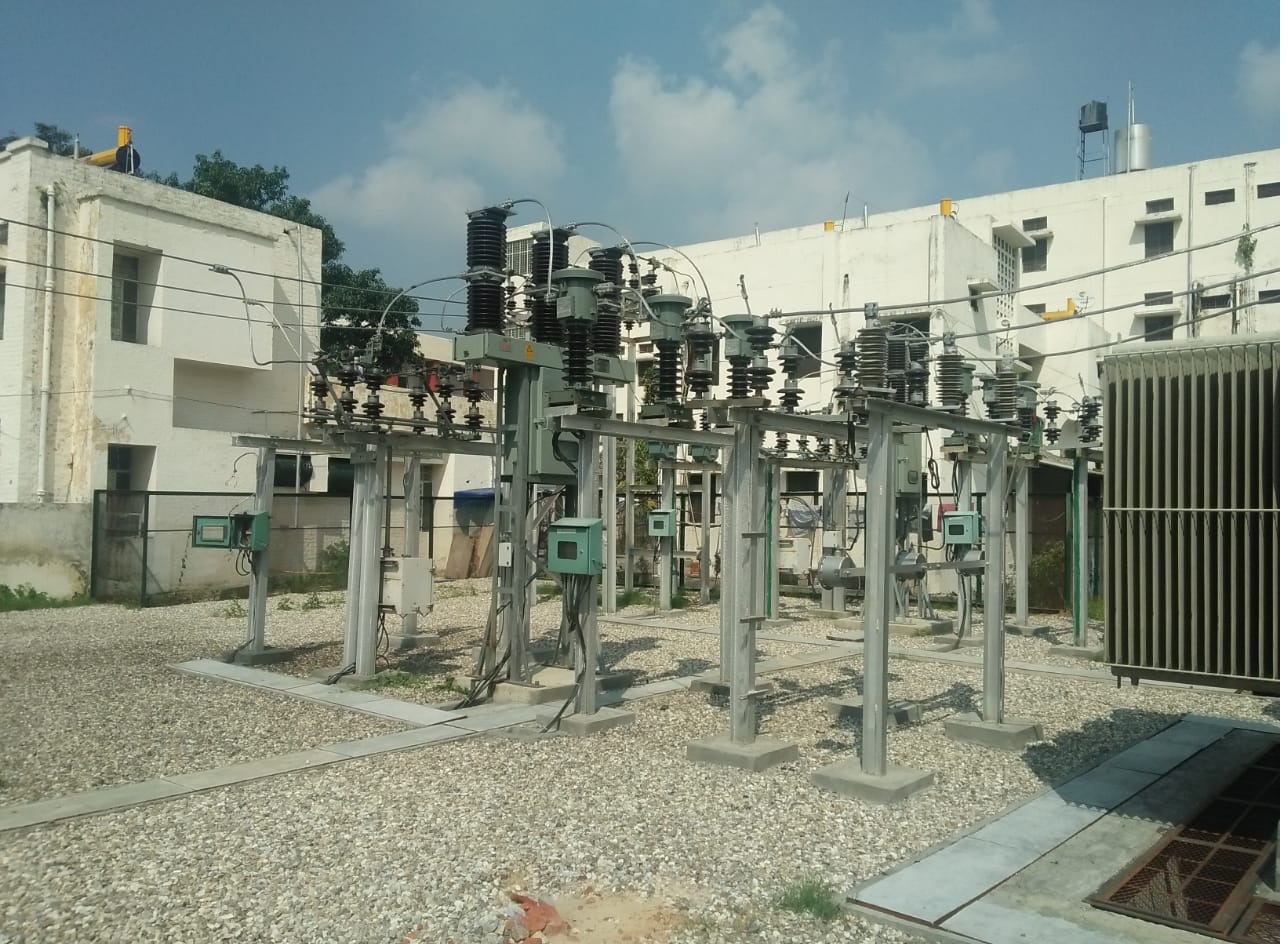

33 kV Switchyard 10MVA, 33/11 kV Transformer

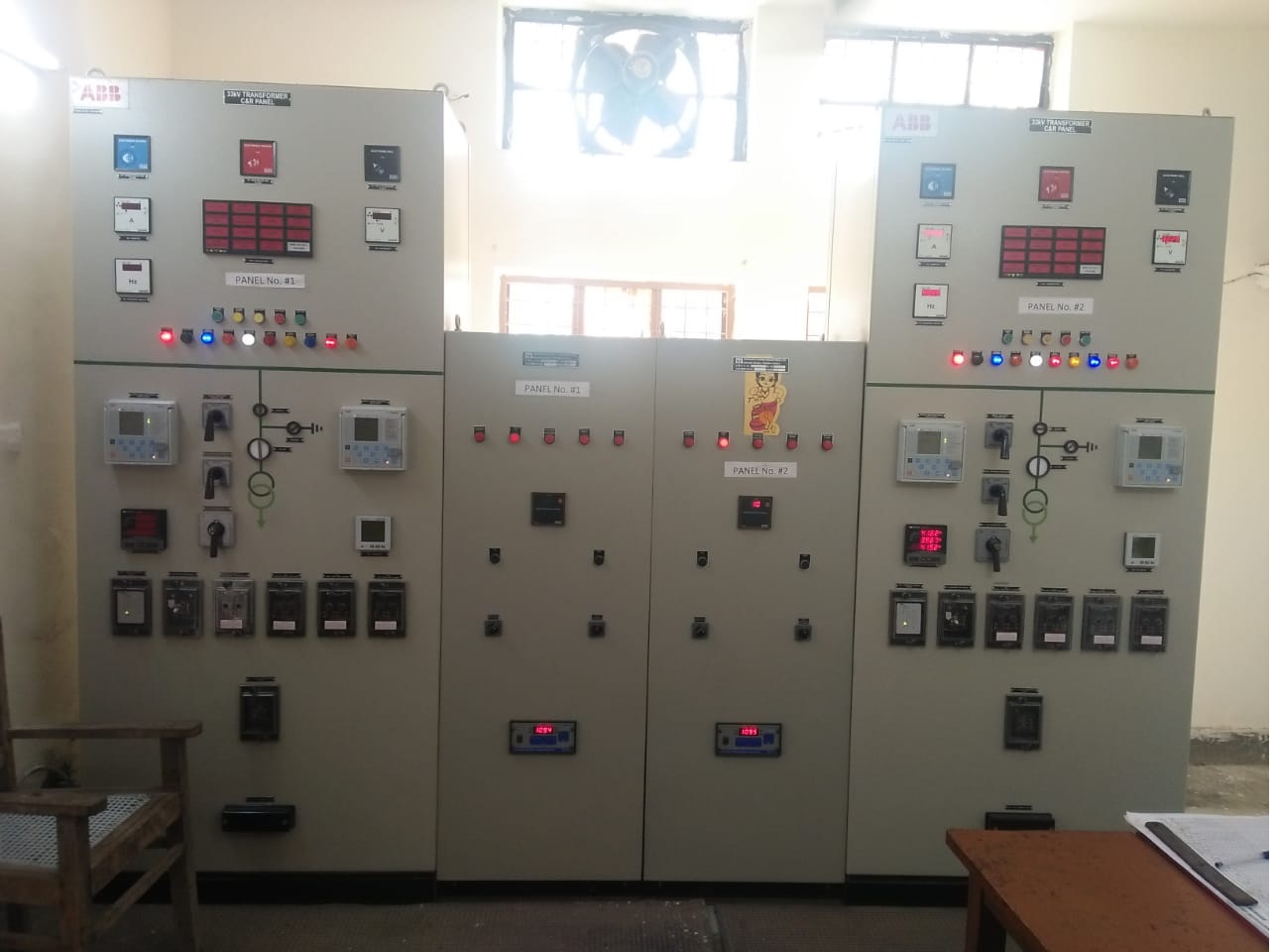

10MVA, 33/11 kV Transformer 33 kV Control & Relay Panels
×
![]()
